Nanometrology calibration wafers and SEM simulation software

  • Semiconductor metrology infrastructure development is critical for achieving profitable future products, and such development requires availability of high performance IP-neutral calibration artifacts, and simulation software of key metrology techniques for deeper understanding of measurement physics for optimizing metrology performance.

  • AMAG nanofoundry marries the advanced new comprehensive AMAG7 metrology reticle with key process steps from foundries to build a growing library of versatile metrology-centric calibration wafers patterned in contemporary critical process levels, providing the industry a modern off-shelf IP-neutral solution for such metrology work, with full collaboration possible with any other metrology type.

    Learn more

  • AMAG SimuSEM simulates scanning electron microscope (SEM) images and electron interactions with solids. SimuSEM provides a performant and rigorous SEM simulation with a powerful and fully-featured GUI.

    Learn more

Calibration Wafers/Chips

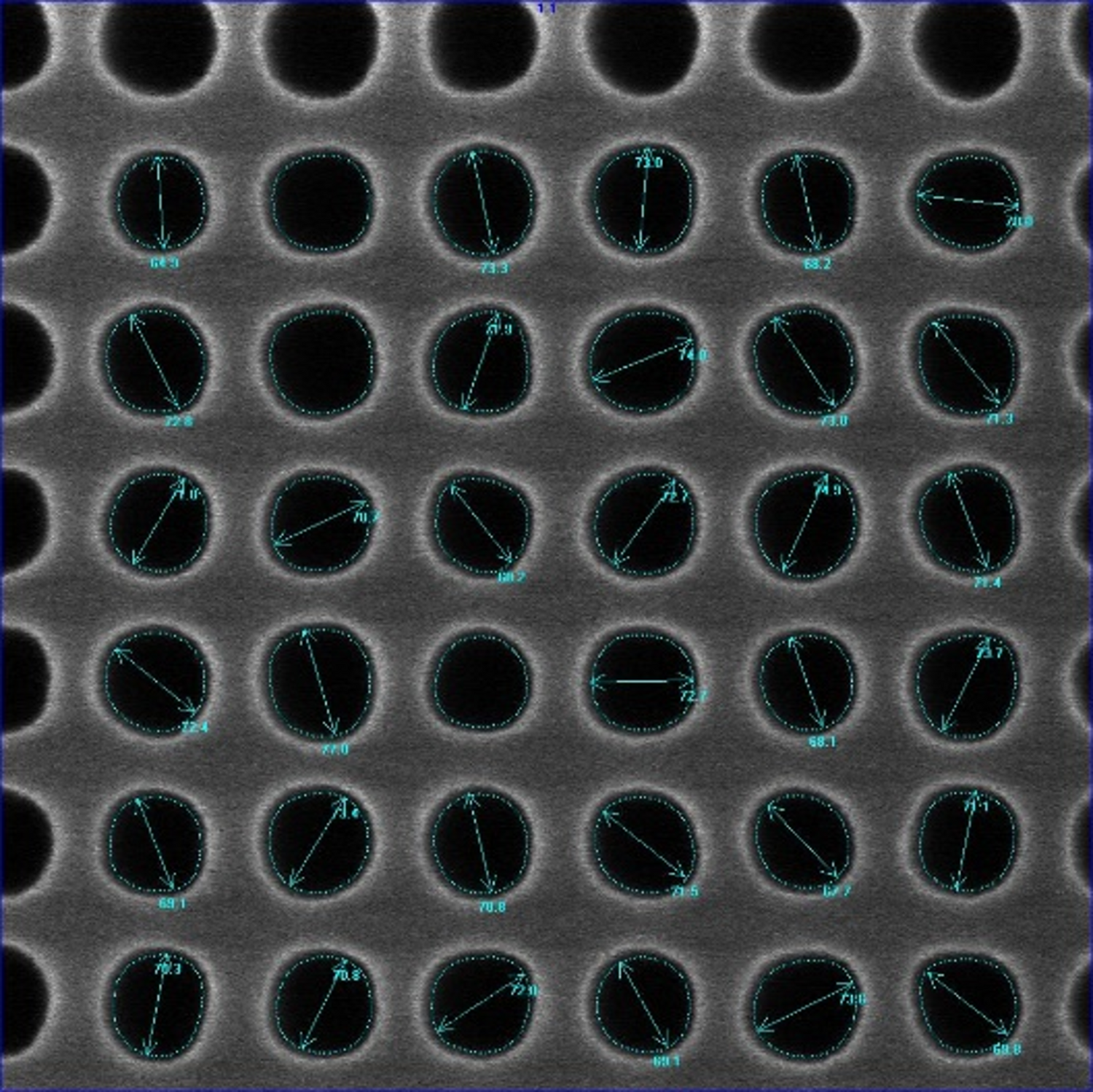

The AMAG7 reticle is a comprehensive new advanced metrology patterning reticle and reference pattern collection, derived from SEMATECH AMAGā€™s AMAG4/5/6 and modernized to todayā€™s metrology and processing communityā€™s needs. AMAG7 makes available short-loop wafers with the comprehensive AMAG7 patterned into various modern process levels at a contemporary foundry to make available leading-edge, mission-critical yet IP-neutral calibration samples/artifacts for metrology or processing R&D needs.

SimuSEM Software

SimuSEM

AMAG SimuSEM simulates scanning electron microscope (SEM) images and electron interactions with solids. SimuSEM provides a performant and rigorous SEM simulation with a powerful and fully-featured GUI.

Key SimuSEM simulation features:

  • Simulations run in the background, with results displayed in SimuSEM's GUI for analysis and detailed viewing.
  • Large selection of useful geometric primitive shapes and Boolean operators to intuitively build and visualize complex 3D samples on simulation workbench.
  • Discretely-defined height map objects for rough features, surfaces and edges.
  • A growing database of material physical models validated to experimental results from the literature, with a path to adding more and validating models to experimental SE yield curves.
  • Adjustable beam energies, beam spot sizes and tilt beam, user-defined discrete detectors with tunable energy windows, and other SEM variants.
  • Results images for SE, BSE or user-defined energy windows, viewable top-down and in 3D.
  • Energy, angle & detector hit histograms/maps, and energy absorption maps.
  • Fully viewable electron trajectories in 2D & 3D.
